Y Series Three-Phase Asynchronous Induction Motor
Y Series Three-Phase Asynchronous Induction Motor
Description:

Y Series Three-Phase Asynchronous Induction Motor

INTRODUCE:
Y series motors are totally enclosed fan cooled (TEFC), three-phase squirrel cage induction motors, it is national uniform design in conformity with the relevant standard of IEC60034-1 and JB/T9616-1999, enjoys international interchangeable features.
Y series motors have outstanding performance such as high efficiency, energy saving, high starting torque, low noise, slight vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where do not exist combustible, explosive or corrosive gas, and special equipments, such as machine tools, pumps, blowers, transport machinery, mixer, agriculture machinery and food machines, etc.
The Efficiency can meet EFF2, EFF1 standards on customer request.

OPERATING CONDITIONS:
Ambient temperature: -15℃≤θ≤40℃         Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-760V.
Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55  Insulation Class: B, F
Cooling method: ICO141 Duty: S1 (continuous)
Connection: Star connection for up to 3kw, Delta connection for 4kw and above
Remarks: Motors can be equipped with PTC, for frame size 160 and above can be equipped with re-greasing system.

Frame Size: 80~355L      Poles: 2,4,6,8,10   Output: 1~430(HP)    0.75~315 ( kW)
Technical Data-Y SEREES MOTOR
型号 Type
功率 Power
电流 Current
转速 Speed
效率 Eff
功率因素 Power Factor
堵转电流/额定电流Starting current/Rated current
堵转转矩/额定转矩Starting torque/Rated torque
最大扭矩/额定扭矩Max torque/Rated tprque
Hp
kW
(A)
(r/min)
(%)
(cos¢)
380V - 50HZ - 2P
Y80M1-2
1
0.75
1.8
2800
75
0.84
6.5
2.2
2.3
Y80M2-2
1.5
1.1
2.5
2800
77
0.86
7
2.2
2.3
Y90S-2
2
1.5
3.4
2800
78
0.85
7
2.2
2.3
Y90L-2
3
2.2
4.8
2840
80.5
0.86
7
2.2
2.3
Y100L-2
4
3
6.4
2840
82
0.87
7
2.2
2.3
Y112M-2
5.5
4
8.2
2890
85.5
0.87
7
2.2
2.3
Y132S2-2
7.5
5.5
11.1
2900
85.5
0.88
7
2
2.3
Y132S2-2
10
7.5
15
2900
86.2
0.88
7
2
2.3
Y160M1-2
15
11
21.8
2930
86.2
0.88
7
2
2.3
Y160M2-2
20
15
29.4
2930
88.2
0.88
7
2
2.3
Y160L-2
25
18.5
35.5
2930
89
0.89
7
2
2.2
Y180M-2
30
22
42.2
2940
89
0.89
7
2
2.2
Y200L1-2
40
30
56.9
2950
90
0.89
7
2
2.2
Y200L2-2
50
37
69.8
2950
90.5
0.89
7
2
2.2
Y225M-2
45
60
83.9
2970
91.5
0.89
7
2
2.2
Y250M-2
55
75
102.7
2970
91.4
0.89
7
2
2
Y280S-2
75
100
140.1
2970
91.4
0.89
7
2
2.2
Y280M-2
90
125
167
2970
92
0.89
7
2
2.2
Y315S-2
110
150
195.1
2980
94
0.91
7.1
1.8
2.2
Y315M-2
132
180
231.6
2980
94.5
0.91
7.1
1.8
2.2
Y315L1-2
160
220
279.6
2980
94.6
0.92
7.1
1.8
2.2
Y315L2-2
200
270
347.7
2980
94.8
0.92
7.1
1.8
2.2
Y355M-2
250
340
433
2980
95.3
0.92
7.1
1.6
2.2
Y355L-2
315
430
544
2980
95.6
0.92
7.1
1.6
2.2
380V - 50HZ - 4P
Y801-4
0.75
0.55
1.5
1400
73
0.76
6
2.3
2.3
Y802-4
1
0.75
2
1400
74.5
0.76
6
2.3
2.3
Y90S-4
1.5
1.1
2.8
1400
78
0.78
6.5
2.3
2.3
Y90L-4
2
1.5
3.7
1400
79
0.79
6.5
2.3
2.3
Y100L1-4
3
2.2
5
1420
81
0.82
7
2.2
2.3
Y100L2-4
4
3
6.8
1420
82.5
0.81
7
2.2
2.3
Y112M-4
5.5
4
8.8
1440
84.5
0.82
7
2.2
2.3
Y132S-4
7.5
5.5
11.7
1440
85.5
0.84
7
2.2
2.3
Y132SM-4
10
7.5
15.4
1440
87
0.85
7
2.2
2.3
Y160M-4
15
11
22.6
1460
88
0.84
7
2.2
2.3
Y160M-4
20
15
30.3
1460
88.5
0.85
7
2.2
2.3
Y180M-4
25
18.5
35.9
1470
91
0.86
7
2
2.2
Y180L-4
30
22
42.5
1470
91.5
0.86
7
2
2.2
Y200L-4
40
30
56.8
1470
92.2
0.87
7
2
2.2
Y225S-4
37
50
69.8
1460
92.2
0.87
7
1.9
2.2
Y225M-4
45
60
84.2
1470
91.8
0.87
7
1.9
2.2
Y250M-4
55
75
102.5
1470
92.3
0.88
7
2
2.2
Y280S-4
75
100
139.7
1470
92.6
0.88
7
1.9
2.2
Y280M-4
90
125
164.4
1480
92.7
0.88
7
1.9
2.2
Y315S-4
110
150
200.2
1480
93.5
0.88
6.9
1.8
2.2
Y315M-4
132
180
239.1
1480
94.5
0.88
6.9
2.1
2.2
Y315L1-4
160
220
288
1480
94.8
0.88
6.9
2.1
2.2
Y315L2-4
200
270
358.9
1480
94.9
0.89
6.9
2.1
2.2
Y355M-4
250
340
443
1480
95
0.89
6.9
2.1
2.2
Y355L-4
315
430
556
1490
95.3
0.9
6.9
2.1
2.2
380V - 50HZ - 6P
Y90S-6
1
0.75
2.3
910
72.5
0.7
5.5
2
2.2
Y90L-6
1.5
1.1
3.2
910
73.5
0.72
5.5
2
2.2
Y100L-6
2
1.5
4
940
77.5
0.74
6
2
2.2
Y112M-6
3
2.2
5.6
940
80.5
0.74
6
2
2.2
Y132S-6
4
3
7.2
960
83
0.76
6.5
2
2.2
Y132M1-6
5.5
4
9.4
960
84
0.77
6.5
2
2.2
Y1322-6
7.5
5.5
12.6
960
85.3
0.78
6.5
2
2
Y160M-6
10
7.5
17
970
86
0.78
6.5
2
2
Y160L-6
15
11
24.6
970
87
0.78
6.5
2
2
Y180L-6
20
15
31.4
970
89.5
0.81
6.5
1.8
2
Y200L1-6
25
18.5
37.7
970
89.8
0.83
6.5
1.8
2
Y200L2-6
30
22
44.6
970
90.2
0.83
6.5
1.8
2
Y225M-6
30
40
59.5
970
90.2
0.85
6.5
1.7
2
Y250M-6
37
50
72
970
90.8
0.86
6.5
1.8
2
Y280S-6
45
60
85.4
970
92
0.87
6.5
1.8
2
Y280M-6
55
75
104.9
970
91.6
0.87
7
1.8
2
Y315S-6
75
100
140.2
980
93.5
0.86
7
2
2
Y315M-6
90
125
167
980
93.8
0.86
7
2
2
Y315L1-6
110
150
202.3
980
94
0.86
6.7
2
2
Y315L2-6
132
180
242.3
980
94.2
0.87
6.7
1.9
2
Y6Y355M1-6
160
220
292
990
94.5
0.87
6.7
1.9
2
Y335M2-6
200
270
365
990
94.7
0.88
6.7
1.9
2
Y355L-6
250
340
455
990
94.9
0.88
6.7
1.9
2
380V - 50HZ - 8P
Y160M1-8
5.5
4
9.9
720
84
0.73
6
2
2
Y160M2-8
7.5
5.5
13.3
720
85
0.74
6
2
2
Y160L-8
10
7.5
17.3
720
86
0.75
6.5
2
2
Y180L-8
15
11
24.8
730
87.5
0.77
6
1.7
2
Y200L-8
20
15
34.1
730
88
0.76
6
1.8
2

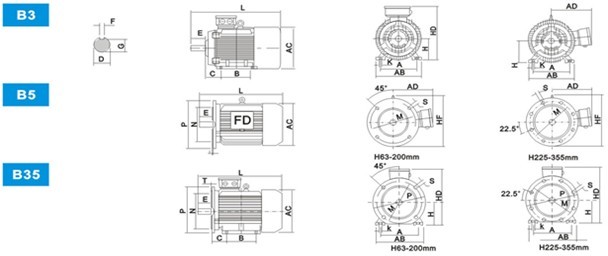

   Y Y2 YS YD THREE PHASE MOTOR DIMENSIONS(mm)

机座号Frame No.
安装尺寸 Mounting dimension(mm)
凸缘号Flange No.
B35 B5
外型尺寸Overall dimensions≤
A
B
C
D
E
F
G
H
K
M
N
P
R*
S
T
AB
AC
AD
HD
L
DH
63
100
80
40
11
23
4
8.5
63
7
FF115
115
95
140
0
10
3
135
130
70
18, 0
230
M4×12
71
112
90
45
14
30
5
11
71
7
FF130
130
110
160
0
10
3.5
150
145
80
195
255
M5×12
80
125
100
50
19
40
6
15.5
80
10
FF165
165
130
200
0
12
3.5
165
175
145
220
295
M6×16
90S
140
100
56
24
50
8
20
90
10
FF165
165
130
200
0
12
3.5
180
195
155
250
320
M8×19
90L
140
125
56
24
50
8
20
90
10
FF165
165
130
200
0
12
3.5
180
195
155
250
345
M8×19
100L
160
140
63
28
60
8
24
100
12
FF215
215
180
250
0
15
4
205
215
180
270
385
M10×22
112M
190
140
70
28
60
8
24
112
12
FF215
215
180
250
0
15
4
230
240
190
300
400
M10×22
132S
216
140
89
38
80
10
33
132
12
FF265
265
230
300
0
15
4
270
275
210
345
470
M12×28
132M
216
178
89
38
80
10
33
132
12
FF265
265
230
300
0
15
4
270
275
210
345
510
M12×28
160M
254
210
108
42
110
12
37
160
15
FF300
300
250
350
0
19
5
320
330
255
420
615
M16×36
160L
254
254
108
42
110
12
37
160
15
FF300
300
250
350
0
19
5
320
330
255
420
670
M16×36
180M
279
241
121
48
110
14
42.5
180
15
FF300
300
250
350
0
19
5
355
380
280
455
700
M16×36
180L
279
279
121
48
110
14
42.5
180
15
FF300
300
250
350
0
19
5
355
380
280
455
740
M16×36
200L
318
305
133
55
110
16
49
200
15
FF350
350
300
400
0
19
5
395
420
305
505
770
M20×42

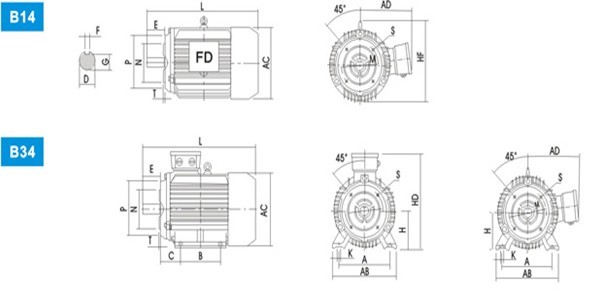

机座号Frame No.
安装尺寸 Mounting dimension(mm)
凸缘号Flange No.
B34 B14
外型尺寸 Overall dimensions≤
A
B
C
D
E
F
G
H
K
M
N
P
R*
s
T
AB
AC
AD
HD
L
DH
63
100
80
40
11
23
4
8.5
63
7
FT75
75
60
90
0
M5
2.5
135
130
70
180
230
M4×12
71
112
90
45
14
30
5
11
71
7
FT85
85
70
105
0
M6
2.5
150
145
80
195
255
M5×12
80
125
100
50
19
40
6
15.5
80
10
FT100
100
80
120
0
3
165
175
145
220
295
M6×16
90S
140
100
56
24
50
8
20
90
10
FT115
115
95
140
0
M8
3
180
195
155
250
320
M8×19
90L
140
125
56
24
50
8
20
90
10
FT115
115
95
140
0
3
180
195
155
250
345
M8×19
100L
160
140
63
28
60
8
24
100
12
FT130
130
110
160
0
3.5
205
215
180
270
385
M10×22
112M
190
140
70
28
60
8
24
112
12
FT130
130
110
160
0
3.5
230
240
190
300
400
M10×22

Home  |   About us  |   Products  |   News  |   Workshop  |   Feedback  |   Contact Us  |
Tel:0086-15959312812 Add:6#HAIXI INDUSTRIAL ZONE NINGDE CITY,FUJIAN ,CHINA
CopyRight 2011 All Right Reserved FUJIAN FUFA ELECTRICAL CO.LTD
Skype
E-mail
E-mail
E-mail
Inquiry
