Home >> Product >>YC series single-phase capacitor-start asynchronous motor
YC series single-phase capacitor-start asynchronous motor
YC series single-phase capacitor-start asynchronous motor
Description:
Product Categories:
Product Description:
Frame NO: 71~132 Power: 0.18~5.5kW
Operation service: S1 Rated Voltage: ±5%
Insulation class: B.F Protection class:: IP44
EFF: EF3 EF2 EF1 Ambient temperature:-15C~40C

Products Introduction::
  YC series single-phase capacitor-start asynchronous motors is totally enclosed fan-cooled type. The starting torque of motors is 2-3 times as rated torque. it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance.
  YC motors are widely application in all types of small machine tools, compression pumps, refrigerators family workshop and the equipment which need full-load start...etc
     Technical Data (220V/50Hz) - YC motor
型号Type
功率 Power
电流 Current
转速Speed
效率 Eff
功率因素 Power Factor
堵转电流/额定电流Starting current/Rated current
堵转转矩/额定转矩Starting torque/Rated torque
最大扭矩/额定扭矩Max torque/Rated tprque
Hp
kW
(A)
(r/min)
(%)
(cos¢)
220V 50HZ 2P
YC7112
1/4
0.18
1.89
2800
60
0.72
7
3
1.8
YC7122
1/3
0.25
2.4
2800
64
0.74
7
3
1.8
YC8012
1/2
0.37
3.4
2800
65
0.77
6.5
2.8
1.8
YC8022
3/4
0.55
4.7
2800
68
0.79
6.5
2.8
1.8
YC90S-2
1
0.75
6.1
2800
70
0.8
6.5
3
1.8
YC90L-2
1.5
1.1
8.7
2800
72
0.8
7
2.5
1.8
YC100L1-2
2
1.5
11.4
2800
74
0.81
7
2.5
1.8
YC100L2-2
3
2.2
16.5
2800
75
0.81
7
2.2
1.8
YC112M-2
4
3
21.88
2800
76
0.82
6.8
2.2
1.8
YC112M2-2
5
3.7
26.64
2800
77
0.82
6.4
2.2
1.8
220V 50HZ 4P
YC7114
1/6
0.12
1.88
1400
50
0.58
9
3
1.8
YC7124
1/4
0.18
2.49
1400
53
0.62
7
2.8
1.8
YC8014
1/3
0.25
3.11
1400
58
0.63
6
2.8
1.8
YC8024
1/2
0.37
4.24
1400
62
0.64
6
2.5
1.8
YC90S-4
3/4
0.55
5.5
1400
66
0.69
6
2.5
1.8
YC90L-4
1
0.75
6.9
1400
68
0.73
6.5
2.5
1.8
YC100L1-4
1.5
1.1
9.6
1400
71
0.74
6.5
2.5
1.8
YC100L2-4
2
1.5
12.5
1400
73
0.75
6.5
2.5
1.8
YC112M-4
3
2.2
17.8
1400
74
0.76
6.5
2.2
1.8
YC132S-4
4
3
23.6
1400
75
0.77
6.5
2.1
1.8
YC132S-4
5
3.7
28
1400
76
0.79
6.5
2.1
1.8
YC132M-4
7.5
5.5
32.5
1400
81
0.95
6.5
2.1
1.8

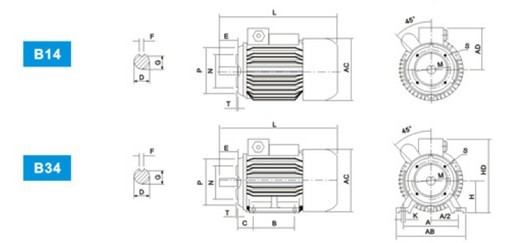

    YC YY SINGLE PHASE MOTOR DIMENSIONS(mm)

机座号Frame No.
安装尺寸 Mounting dimension(mm)
B34 B14
A
B
C
D
E
F
G
H
K
凸缘号Flange No.
M
N
P
R*
s
T
63
100
80
40
11
23
4
8.5
63
7
FT75
75
60
90
0
M5
2.5
71
112
90
45
14
30
5
11
71
7
FT85
85
70
105
0
M6
2.5
80
125
100
50
19
40
6
15.5
80
10
FT100
100
80
120
0
3
90S
140
100
56
24
50
8
20
90
10
FT115
115
95
140
0
M8
3
90L
140
125
56
24
50
8
20
90
10
FT115
115
95
140
0
3
100L
160
140
63
28
60
8
24
100
12
FT130
130
110
160
0
3.5
112M
190
140
70
28
60
8
24
112
12
FT130
130
110
160
0
3.5
132S
216
140
89
38
80
10
33
132
12
132M
216
178
89
38
80
10
33
132
12

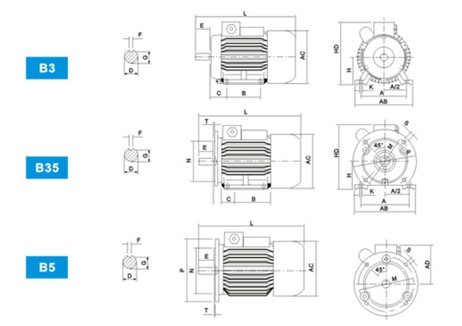

机座号Frame No. B35 B5 外型尺寸Overall dimensions≤
凸缘号Flange No.
M
N
P
R*
S
T
AB
AC
AD
HD
L
DH

63
FF115
115
95
140
0
10
3
135
130
70
180
230
M4×12

71
FF130
130
110
160
0
10
3.5
150
145
80
195
255
M5×12

80
FF165
165
130
200
0
12
3.5
165
175
145
220
295
M6×16

90S
FF165
165
130
200
0
12
3.5
180
195
155
250
320
M8×19

90L
FF165
165
130
200
0
12
3.5
180
195
155
250
345
M8×19

100L
FF215
215
180
250
0
15
4
205
215
180
270
385
M10×22

112M
FF215
215
180
250
0
15
4
230
240
190
300
400
M10×22

132S
FF265
265
230
300
0
15
4
270
275
210
345
470
M12×28

132M
FF265
265
230
300
0
15
4
270
275
210
345
510
M12×28
