Home >> Product >>YL series single phase two-capacitors asynchronous motor
YL series single phase two-capacitors asynchronous motor
YL series single phase two-capacitors asynchronous motor
Description:
Product Categories: YL SERIES MOTOR
Product Description:
Frame NO: 71~132 Power: 0.18~5.5kW
Operation service: S1 Rated Voltage: ±5%
Insulation class: B.F Protection class:: IP44
EFF: EF3 EF2 EF1 Ambient temperature:-15C~40C

Products Introduction::
  YL series single phase two-capacitors asynchronous motor is designed and manufactured in according with IEC standard. YL series motors have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance low noise, slight vibration, light weight and simple construction.
  This series motors can be used on household appliance, pumps, fans and recording meters, etc.
Technical Data YL-SERESE MOTOR (220V/50Hz)
型号Type
功率 Power
电流Current
转速Speed
效率Eff
功率因素Power Factor
堵转电流/额定电流Starting current/Rated current
堵转转矩/额定转矩Starting torque/Rated torque
最大扭矩/额定扭矩Max torque/Rated tprque
Hp
kW
(A)
(r/min)
(%)
(cos¢)
220V 50Hz 2P
YL7112
0.3
0.25
1.53
2800
67
0.93
9.9
1.6
1.8
YL7122
1/2
0.37
2.73
2800
67
0.92
16
1.8
1.8
YL8012
3/4
0.55
3.88
2800
70
0.92
21
1.8
1.8
YL8012B
1
0.75
4.92
2800
73
0.95
29
1.8
1.8
YL8022
1.5
1.1
7.01
2800
75
0.95
40
1.8
1.8
YL90S-2
2
1.5
9.44
2800
76
0.95
55
1.8
1.8
YL90L-2
3
2.2
13.7
2800
77
0.95
80
1.8
1.8
YL100L-2
4
3
18.4
2800
79
0.95
110
1.8
1.8
YL112M-2
5
3.7
22.2
2800
80
0.95
160
1.7
1.8
220V 50Hz 4P
YL7114
1/4
0.18
1.29
1400
63
0.92
7.4
1.6
1.7
YL7124
0.3
0.25
2
1400
62
0.92
12
1.8
1.8
YL7124B
1/2
0.37
2.8
1400
65
0.92
16
1.8
1.8
YL8014
3/4
0.55
3.94
1400
69
0.92
21
1.8
1.8
YL8024
1
0.75
5.22
1400
71
0.92
29
1.6
1.8
YL90S-4
1
0.75
5.22
1400
71
0.92
29
1.6
1.8
YL90S-4
1.5
1.1
7.31
1400
72
0.95
40
1.6
1.8
YL90L-4
2
1.5
9.69
1400
74
0.95
55
1.6
1.8
YL100L1-4
3
2.2
13.85
1400
76
0.95
110
1.8
1.8
YL100L2-4
4
3
18.4
1400
78
0.95
110
1.8
1.8
YL112M1-4
4
3
18.4
1400
78
0.95
110
1.8
1.8
YL112M2-4
5
3.7
22.4
1400
78
0.95
138
1.8
1.8
YL132S1-4
4
3
18.4
1400
79
0.95
110
1.8
1.8
YL132S2-4
5
3.7
22.4
1400
79
0.95
138
1.8
1.8
YL132M-4
7.5
5.5
32.9
1400
80
0.95
227
1.8
1.8

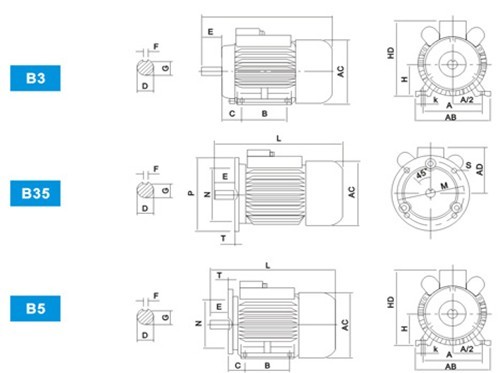

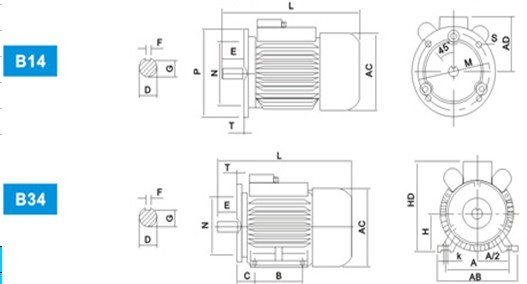

    YL SINGLE PHASE MOTOR DIMENSIONS(mm)

Frame No.
Installation size(mm)
B34 B14
A
B
C
D
E
F
G
H
K
Flange No.
M
N
P
R*
s
T
63
100
80
40
11
23
4
8.5
63
7
FT75
75
60
90
0
M5
2.5
71
112
90
45
14
30
5
11
71
7
FT85
85
70
105
0
M6
2.5
80
125
100
50
19
40
6
15.5
80
10
FT100
100
80
120
0
3
90S
140
100
56
24
50
8
20
90
10
FT115
115
95
140
0
M8
3
90L
140
125
56
24
50
8
20
90
10
FT115
115
95
140
0
3
100L
160
140
63
28
60
8
24
100
12
FT130
130
110
160
0
3.5
112M
190
140
70
28
60
8
24
112
12
FT130
130
110
160
0
3.5
132S
216
140
89
38
80
10
33
132
12
132M
216
178
89
38
80
10
33
132
12

Frame No.
B35 B5 Overall dimensions≤
M
N
P
R*
S
T
AB
AC
AD
HD
L
DH

FF115
115
95
140
0
10
3
135
130
70
180
230
M4×12

FF130
130
110
160
0
10
3.5
150
145
80
195
255
M5×12

FF165
165
130
200
0
12
3.5
165
,
175
145
220
295
M6×16

FF165
165
130
200
0
12
3.5
180
195
155
250
320
M8×19

FF165
165
130
200
0
12
3.5
180
195
155
250
345
M8×19

FF215
215
180
250
0
15
4
205
215
180
270
385
M10×22

FF215
215
180
250
0
15
4
230
240
190
300
400
M10×22

FF265
265
230
300
0
15
4
270
275
210
345
470
M12×28

FF265
265
230
300
0
15
4
270
275
210
345
510
M12×28
